Luckily for the MSO-28 Oscilloscope, I found out that the fuse blew. After replace the fuse, the oscilloscope come back alive.
But my USB Hub was not that lucky. I check its board, and found out that the 3.3V regulator (LM1117-3.3) spoiled, no 3.3V out from that regulator. So, I replace it with LM2940-3.3 (I only have this in my component box), but the USB hub is still dead. I guess the controller IC somehow burned and it is time for a new USB hub. The USB hub had been with me for around 2 years.
Browsing for USB hub, I found this:
It is a 7 port USB hub by D-Link, more information here (http://www.dlink.com/us/en/home-solutions/connect/usb-hubs/dub-h7-7-port-usb-2-0-hub). I place my order through lelong.com.my, the price is RM86.50 including shipping.
Will update about its performance once I receive the item.
Update 2013 01 05
I received the D-Link USB hub from the seller, everything in the package seems good. D-link got its quality compare to cheap USB hub in the market.
As for the previous spoiled USB hub, I finally found the way to utilize it. I convert it into power distribution for all my USB charging device. In my room, I has an android phone, iphone, broadband modem, and a LED lighting for my small aquarium. So, it is useful that I can eliminate all the charger plug for these devices, and use only 1 modified USB hub for the power distribution. Now on my desk, I has one power distribution hub (on the left), and one USB hub (right).
The inside of the spoiled USB hub before the modification.

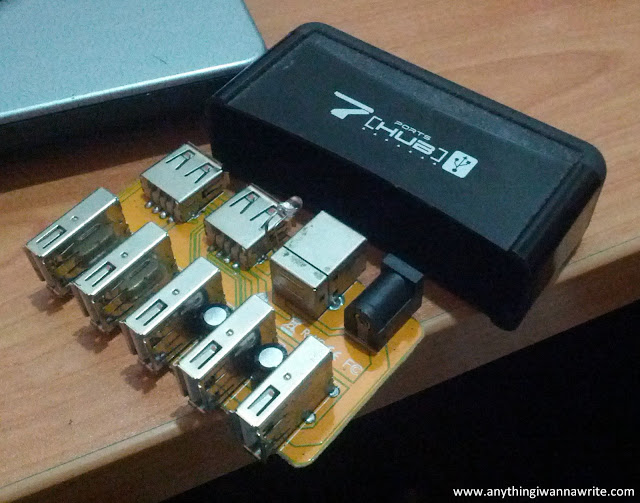

I removed all the components on the board. Leave only the USB Ports, Power Port, Power LED & its resistor, and the the 5V Capacitors. Becareful not to short any tracks on it.
Also, I shorted the signal pin on all the USB port D+ and D-. This is to trigger the charge mode in some devices (sort like telling the devices that it is connected to charger, not a computer). I use multimeter to make sure that all the connection is not shorted, 5V not shorted to GND, or any D+ and D-.
Then I glue back the casing, and use it as a power distribution unit. Everything seems to work nicely, the current supply from the previous power supply is good enough for all my devices.
